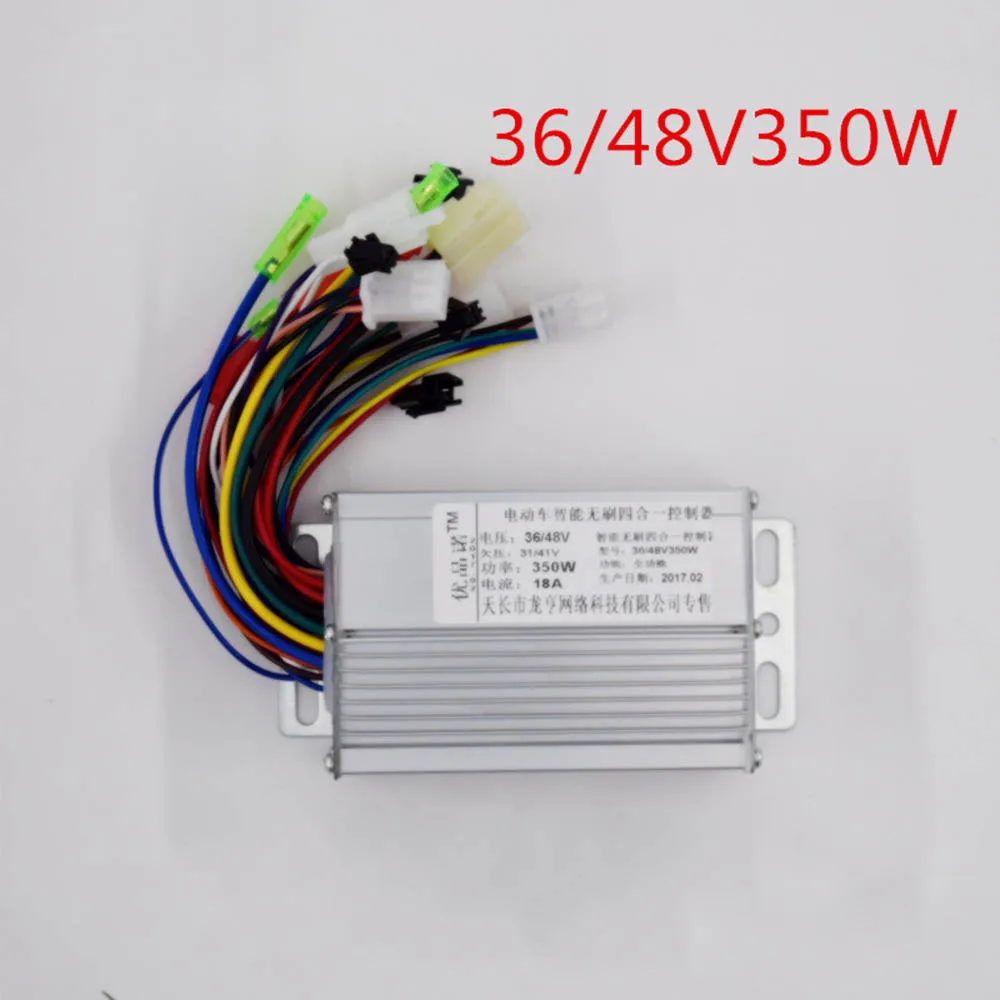

Type Controller

Brand Name MEIANDIAN

Style Dual mode brushless controller

Voltage 36V/48V

Rated power 350W

Use electric bike,ebike,electric

Fit ebike controller,electrice scooter

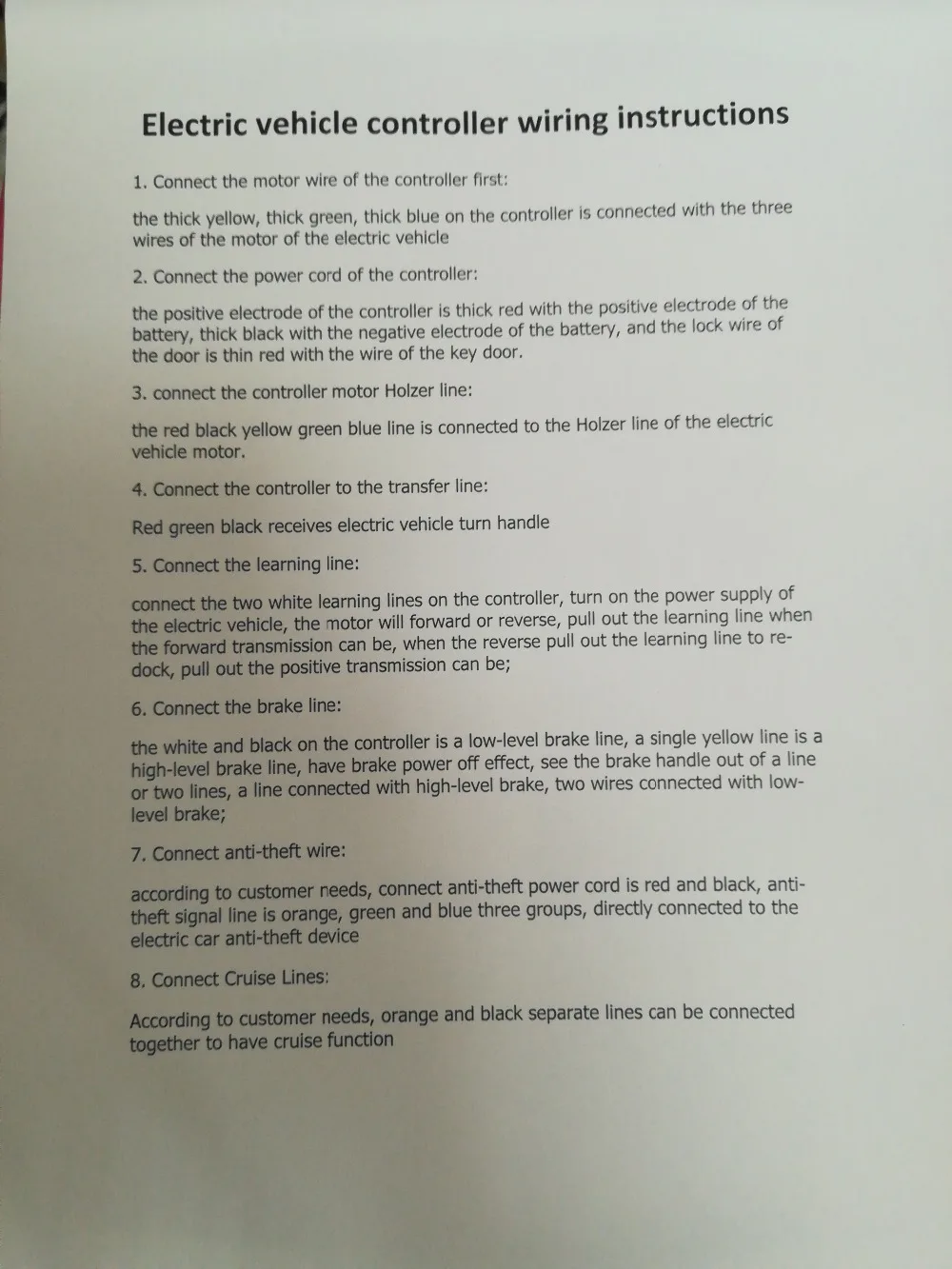

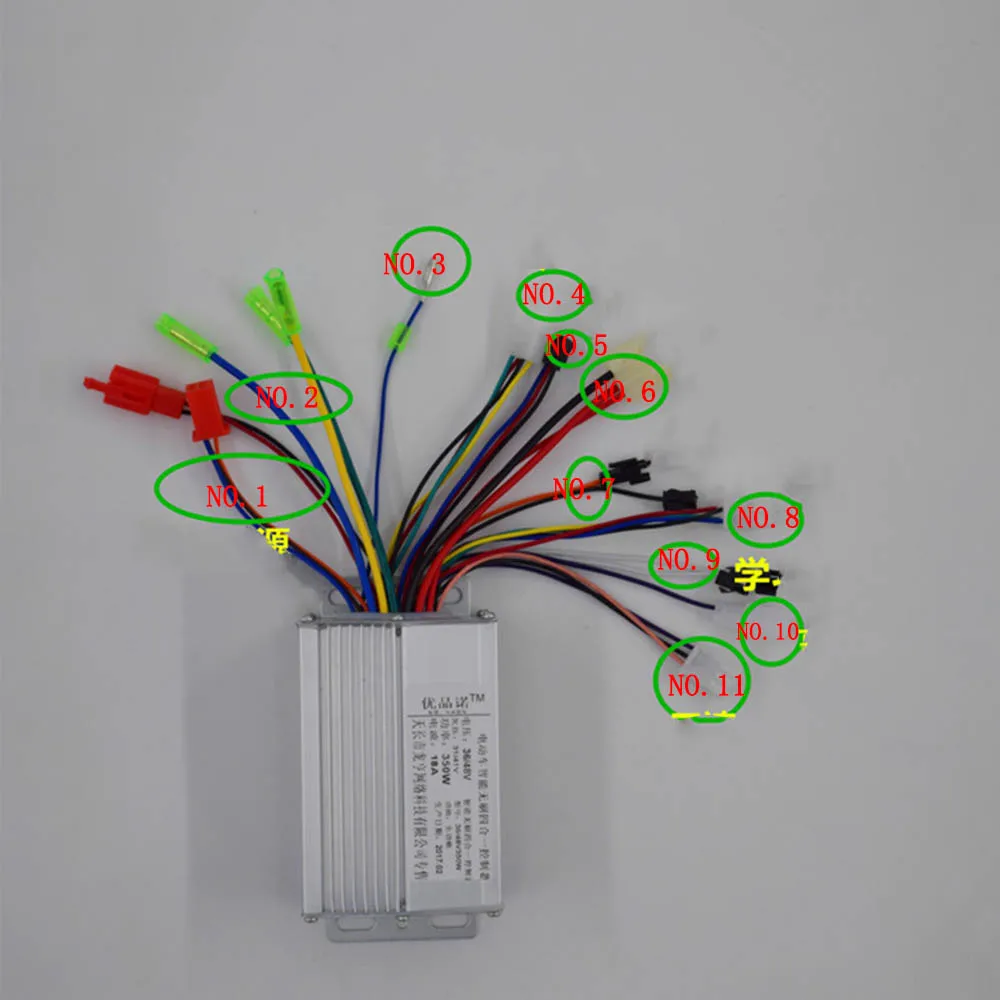

350W 36V/48V 18A ebike controller Electric Bike Tricycle Ebike Dual mode brushless Controller scooter controller 350w Rated Voltage: 36V/48V Low Voltage : 31V/42V±0.5V Rated Power: 350W (this controller is suitable for both 250W and 350W bldc motors) Limit Current: 18A Functions: 1.Power line 2. Motor line 3. Electric door lock line 4. throttle line and Low level brake line(E-ABS brake) 5. Hall line 6. High level brake line(E-ABS brake) 7. Burglar alarm line 8. Instrumentation line(not suitable for LCD instruments) 9. Three-speed line 10. Self-learning line (debug line):The male and female heads are butted, rotate in the positive direction, and then separate. If it is not in the positive direction, unplug it, then plug it in again, turn it in the positive direction, and then separate. 11. Cruise speed line (male and female docking) NO.1: Red Black: anti-theft power supply Red and blue: anti-theft signal NO.2: motor wire NO.3: instrument line NO.4: throttle and brake line. NO.5: power line NO.6: power supply positive and negative pole and electric door lock line. NO.7: cruise route NO.8: Holzer line NO.9: learning line NO.10: high level brake NO.11: three speed line Dear customers, please check the wiring photo before placing the order, if you do not know how to connect the wires or this controller not fit for your ebike, please do not place the order, thanks!
